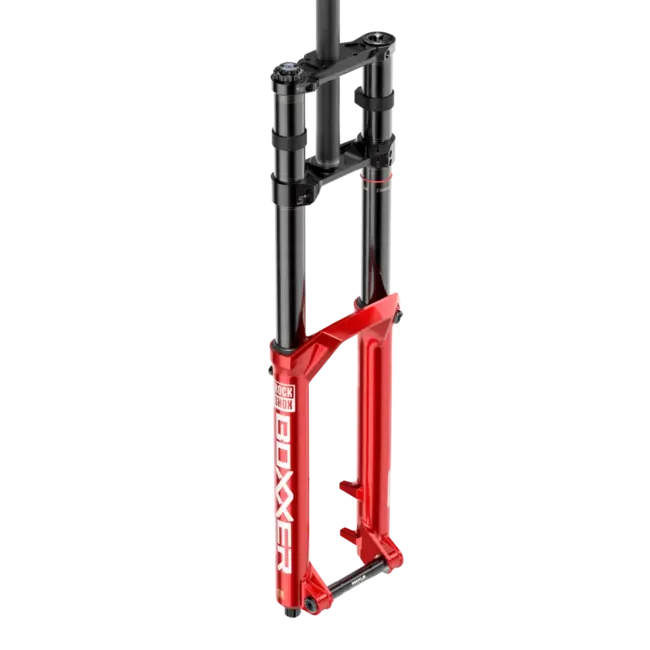

Redesigned by the world’s fastest racers, for the world’s fastest racers, you want BoXXer in your corner. The all-new 38mm chassis is equipped with the DebonAir+ twin tube air spring that will have you thinking it’s a coil. Paired with a Charger 3 RC2 damper tuned for downhill speed, BoXXer Ultimate takes you straight to the top step of the podium. And with our new crown adjustment lines, setup is a breeze—no rulers required.
- NEW 38mm chassis designed to meet the needs of the world’s fastest racers with balanced stiffness and ride quality
- NEW DebonAir+ twin tube air spring strikes the perfect balance between butter-smooth small bump feel, added support throughout the travel, and taller ride height for confidence when things get steep
- NEW Signature colorway BoXXer Electric Red with an all-new graphics package
- NEW RockShox premium fender compatibility (RockShox Bolt-On Fender included with purchase)
- NEW Lightweight machined and anodized crown for premium looks and durability
- NEW Crown height gradient creates a visual guide to simplify setup, no ruler required
- Charger 3 damper tuned for BoXXer’s updated chassis and spring. Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is meaningful and exact. This allows the rider to tune to perfection with every click.
- ButterCups block 20% of high-frequency “trail chatter” to reduce hand and arm fatigue, leaving you feeling fresh with more control
- Ultra-low-friction SKF wiper seals provide long-lasting fork performance and improve overall suspension feel
- Maxima Plush damping fluid reduces friction and silences damper noise
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride
Specifications
Wheel size |
27.5", 29" |
Travel (mm) |
180mm, 190mm, 200mm |
Damper Type |
Charger 3 RC2 W/ButterCups |
Fork offset |
44mm (27.5"), 48mm (27.5"), 48mm (29"), 52mm (29") |
Color (FS) |
BoXXer Electric Red - Gloss, Gloss Black |
E-Bike Approved |
E-bike Approved |
Steerer |
1-1/8" Aluminum |
Axle |
20x110mm BOOST™ |
Upper tube type |
38mm aluminum |
Damper adjust |
Crown |
Volume reducer |
0/6 Tokens, 1/6 Tokens |
Spring |
DebonAir+ W/ButterCups |
Max Tire Width (mm) |
81 |
Maximum Rotor Size |
220mm |
Minimum Rotor Size |
200mm |
Fender Compatibility |
Bolt On - Short |
Weight (g) |
2880 |
Weight Based On |
200mm, Short Crown (Weights same for 27.5" and 29") |
